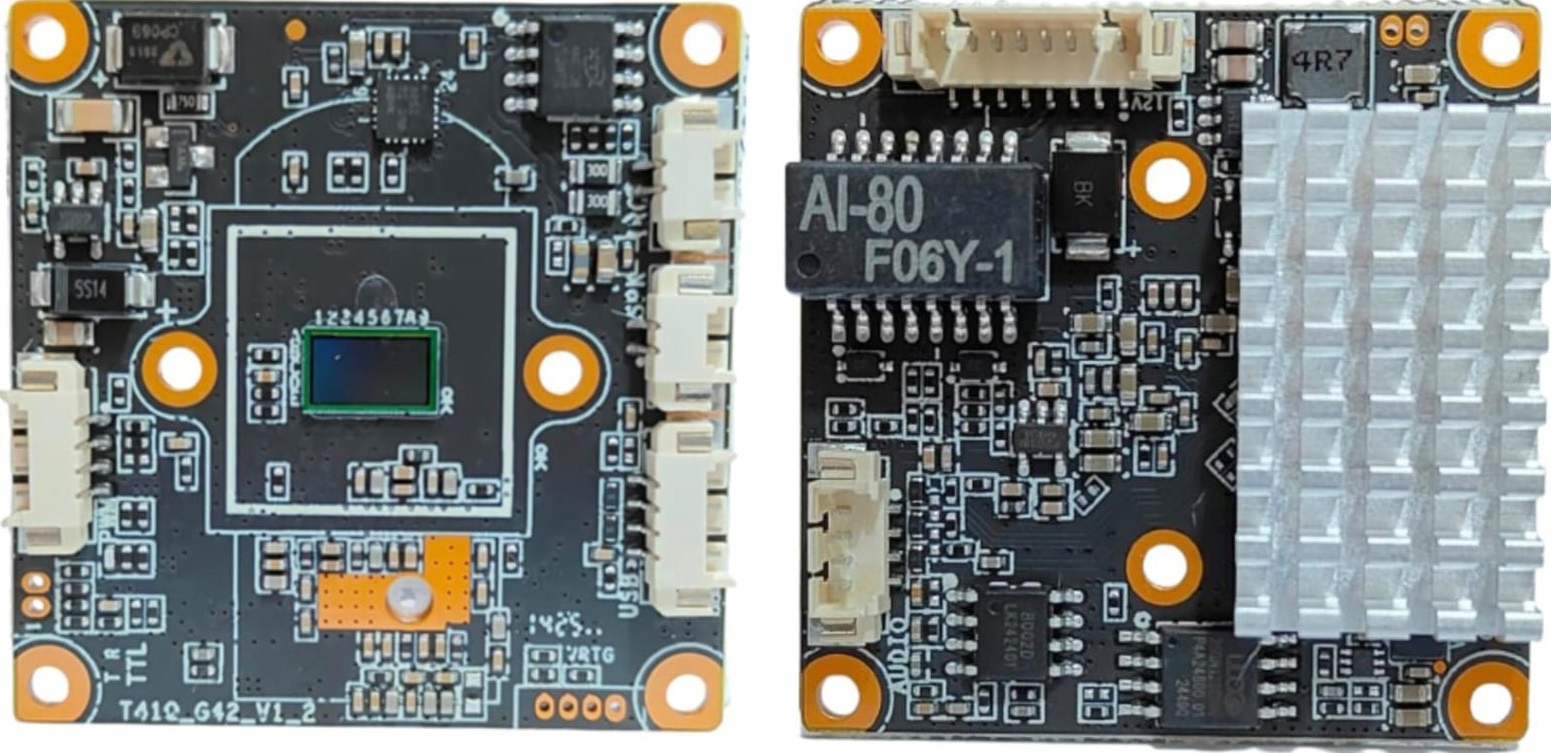

IP 8MP AI-80 Smart Analysis Camera PCB
Inbuilt Amplifier | AI Detection | Low-Light Performance
Upgrade your CCTV solutions with the AI-80 IP 8MP Smart Camera PCB, designed for advanced AI video analytics, superior low-light clarity, and flexible lens compatibility. Powered by the T41NQ chipset and an 8MP CMOS sensor, this PCB is ideal for professional IP camera manufacturing and high-end surveillance applications.
🔹 Key Features
8MP High-Resolution Imaging with excellent low-light performance
AI Smart Analysis: Area intrusion & line-cross detection
Advanced Night Vision with IR / Warm / Dual-Light control
Inbuilt Amplifier PCB for enhanced audio support
Wide Image Customization options for professional tuning
📷 Camera Specifications
Model: AI-80
Chipset: T41NQ
Sensor: 1/2.66" 8MP Low-Illumination CMOS Sensor
Lens Support: Fixed lens & Varifocal lens
Day & Night: ICR switch, Auto / Color / B&W / CDS Trigger
Wide Dynamic Range: Digital WDR Supported
🌙 Image & Video Enhancements
3D DNR: Off / Low / Middle / High / Higher
Defog Mode: Off / Low / Middle / High
IR LED Control: Auto / Manual / Off
Mirror Options: Horizontal / Vertical / 180° Flip
Image Adjustments: Brightness, Contrast, Sharpness, Saturation & more
🚨 Smart Event Detection
Normal Events
Motion Detection
Day / Night arming modes
Full-screen or area-based detection
Occlusion Alarm
Camera blocking detection
Privacy Mask
Supports up to 4 configurable areas
Intelligent AI Events
Area Intrusion Detection
Custom polygon area drawing
Target-type filtering
Line-Cross Detection
Single virtual line detection
Direction-based analysis
📢 Alarm Linkage Support:
Upload alerts | Email notifications | Voice alarm output
